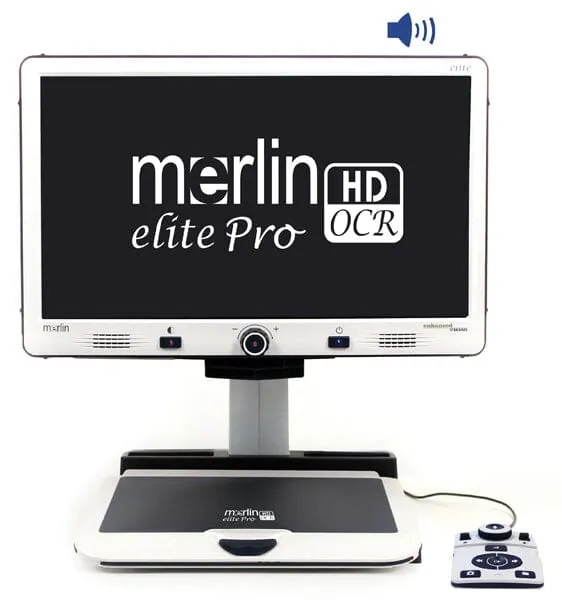

Merlin elite Pro is a high performance desktop video magnifier (CCTV), featuring a Full HD 1080p camera and Full Page Text-to-Speech (OCR).
The high definition camera displays crystal clear images in vibrant colour and contrast while its high resolution LCD and large field of view produce maximum detail on a clear bold display.

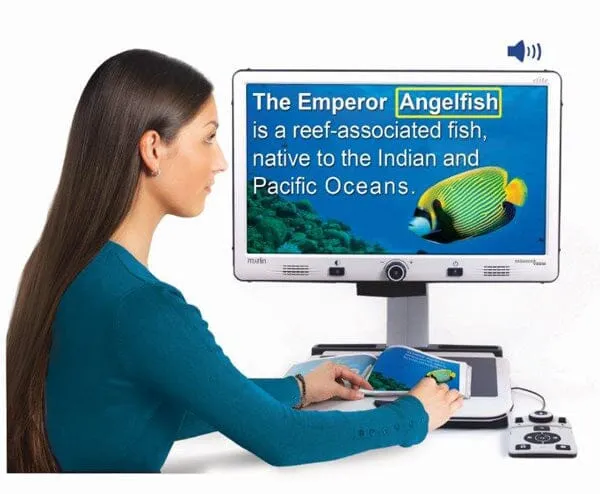

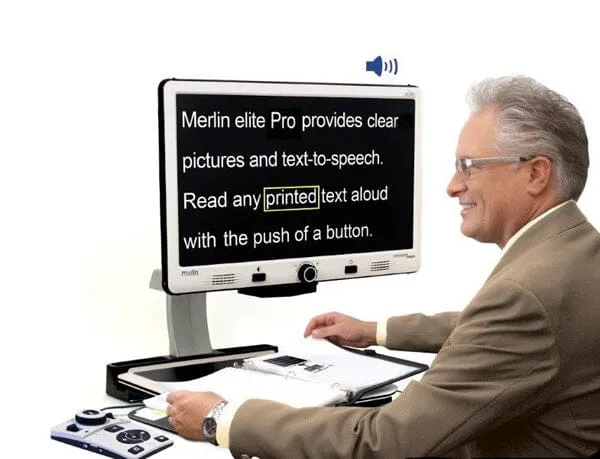

With the push of one button, Merlin elite Pro allows you to change from live image mode to full page Text-to-Speech mode to have it read your favorite article or book aloud.
A perfect solution for anybody looking for a powerful all-in-one electronic magnifier.
Features
Video Magnifier (CCTV):
- Full HD 1080p auto focus camera
- 24” high resolution HD LCD for superior image quality
- Magnification up to 70x
- 32 viewing modes to optimize contrast and brightness
- Screen easily pivots horizontally and vertically to provide the most comfortable viewing position
- Low profile XY table with a user friendly lock mechanism

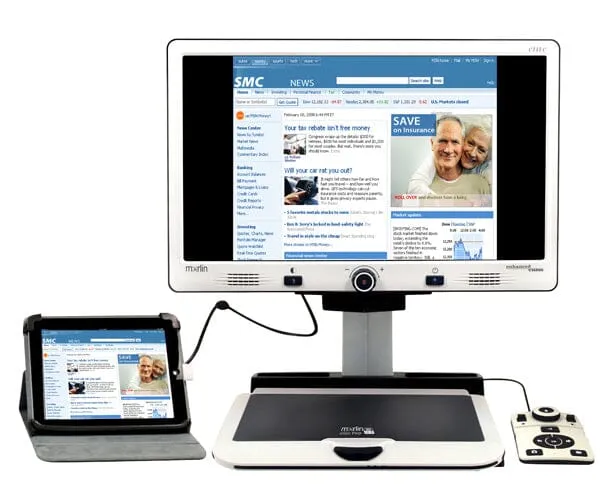

- Computer compatible – toggle between CCTV and computer, connects to tablets & iPad
Text-to-Speech (OCR):
- 13 Megapixel Camera for accurate Full Page Text-to-Speech
- 3 OCR reading formats (Full Page Text, Full Page Picture & Single Line Text) for the optimum reading experience
- Easy-to-use console with simple and advanced modes
- Multiple language recognition
- Male & Female premium voices
- Save documents, pictures or books and export files to your PC
- Setup is easy, just plug in and begin
Technical Specifications
|
General |
|
|
Measures |
24” LCD - 70.5cm H X 57.8cm W x 50.8cm D (27.75” H x 22.75” W x 20” D) |
|
Weight |
40.1lbs (18.2 Kg) |
|
Camera |
High Definition 1080p Full HD Camera |
|
Magnification Range |
Normal Range: 2.4X to 41X Extended Range: 2.4x to 73x |
|
Power Supply |
|
|
Input voltage/current |
120-240 VAC / 0.3-0.5A (nominal) |
|
Output voltage |
19 VDC |
|
Frequency |
50 OR 60 Hz |
|
Power usage |
While ON 30W While in Standby Less than 5W While OFF Less than 1W |
|
Equipment Classification (IEC 601-1) |
|
|
Type of Protection |
Class 1 |
|
Degree of Protection |
Type B |
|
Mode of Operation |
Continuous |
|
Operating temperature range |
32-104°F (0-40°C) |
|
Storage/transport temperature range |
32-140°F (0-60°C) |
The file size of an OCR scan varies based on text density. 1000 full page scans at minimum can be stored on Merlin Elite Pro.
